Synchronised Updates
[2:54]

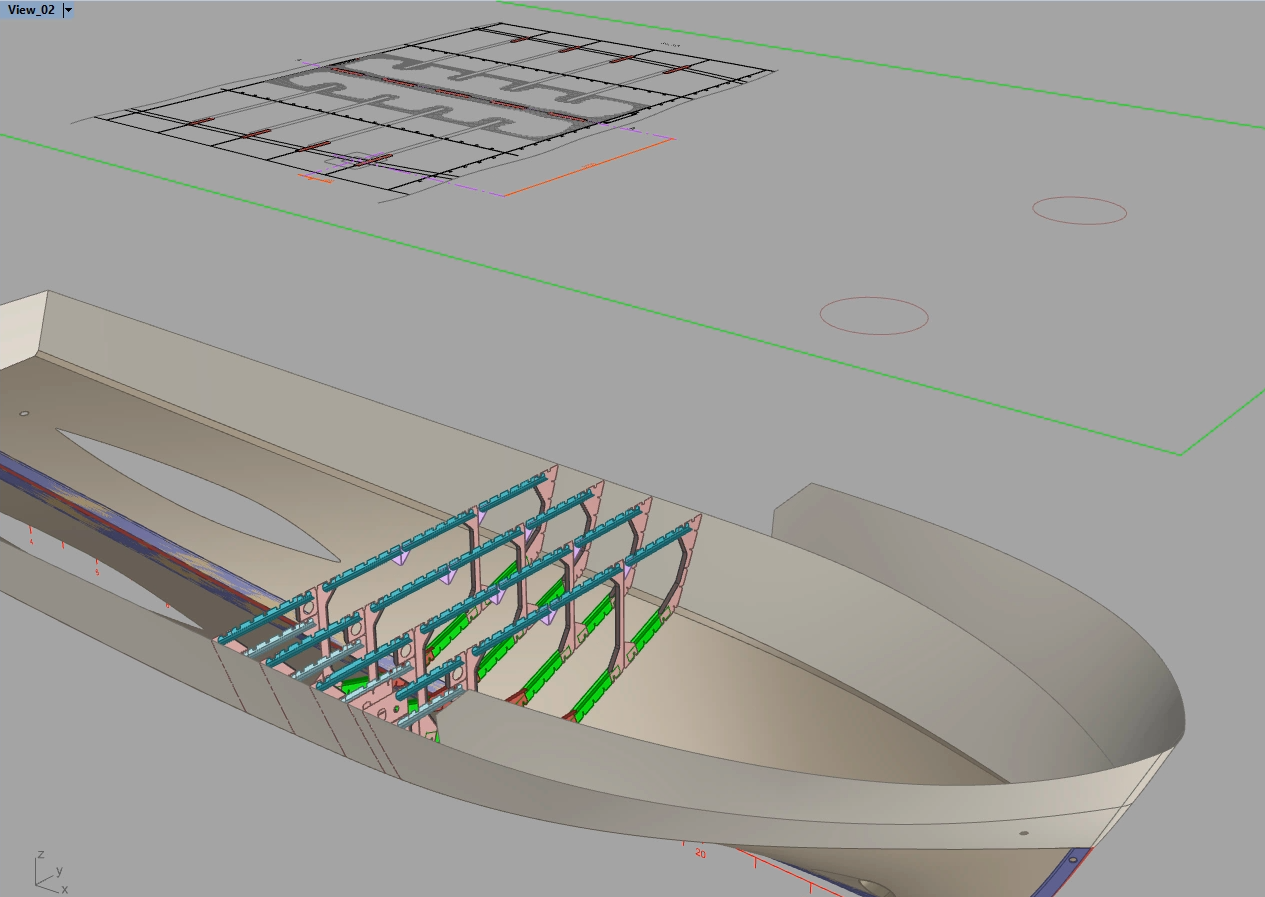

An advantage of BoundaryBox Modelling is the ability to manually keep the 3D Model and the 2D drawings in sync.
User discipline and good record keeping will maintain accurate files.

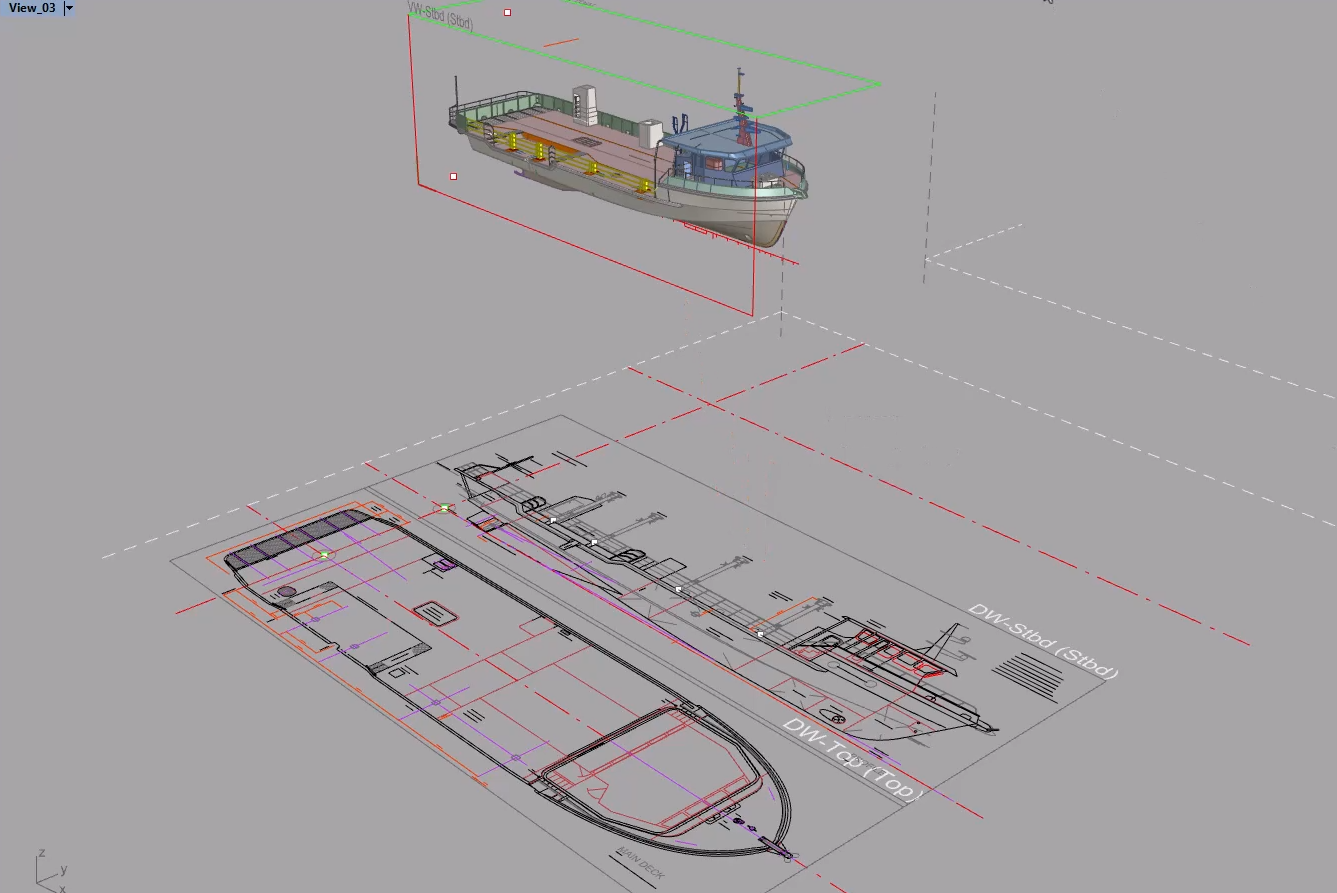

Update 2D Drawings
[0:39]
When new detail is added to the 3D Model, the affected 2D drawings are manually revised with the new geometry.

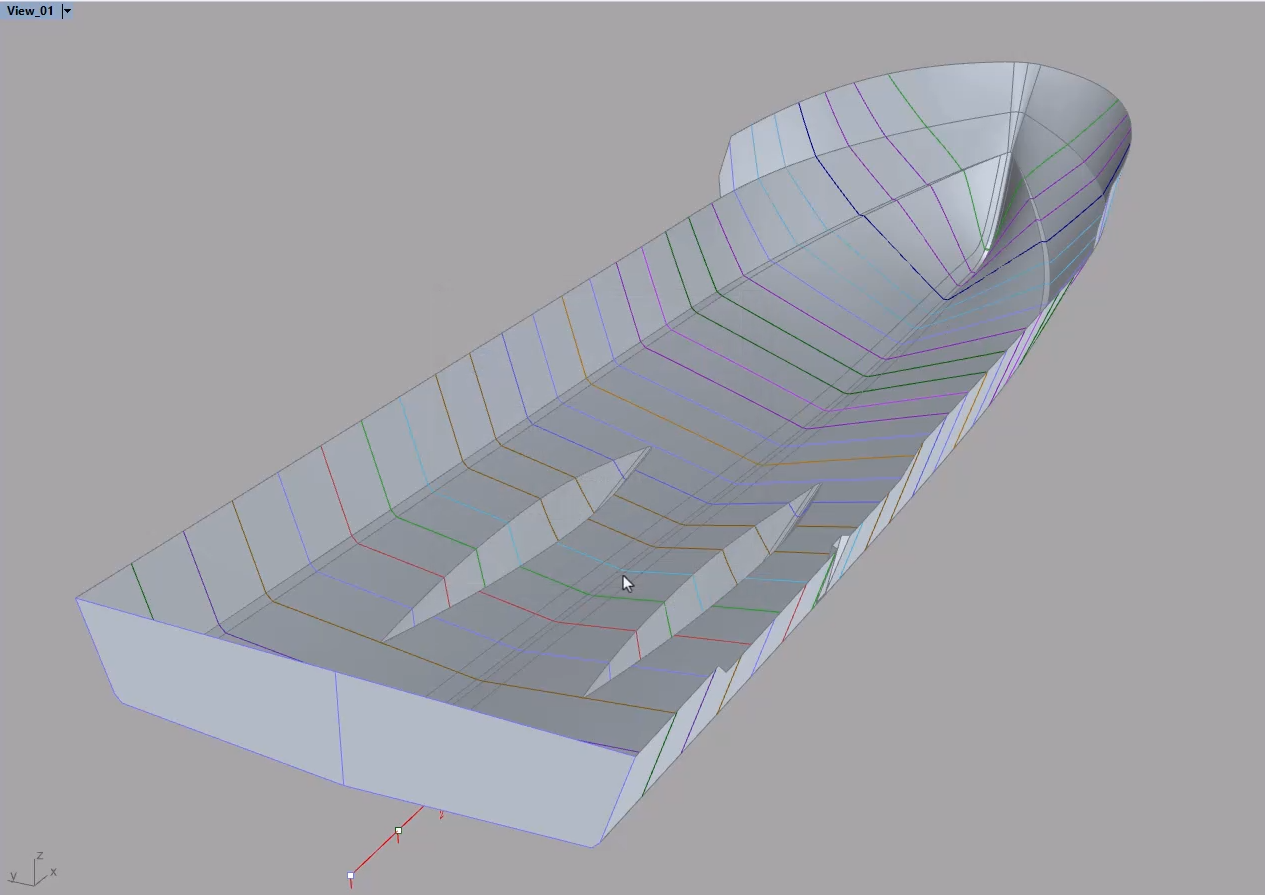

Add Section Sets to the 3D Model
[0:36]
Multiple or single sections are added to the 3D Model in x,y or z directions.
Section locations and properties are easily controlled by the user.

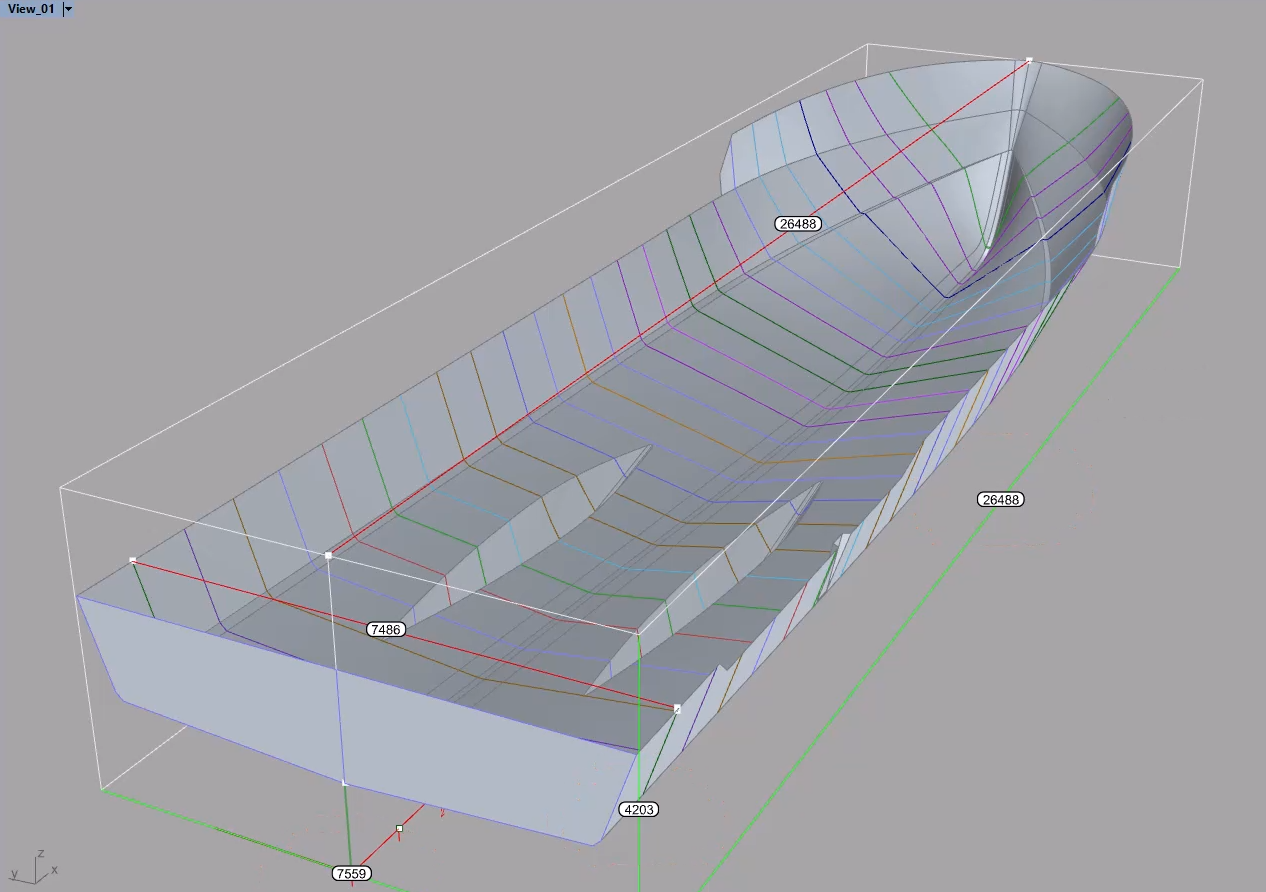

Accurate 3D Measuring
[0:49]
Various 3D measuring tools are included.
Measurements can be stored within an automated layer set for complex measurements and future reference.
Screenshot images or PDF’s are ready available for site use.

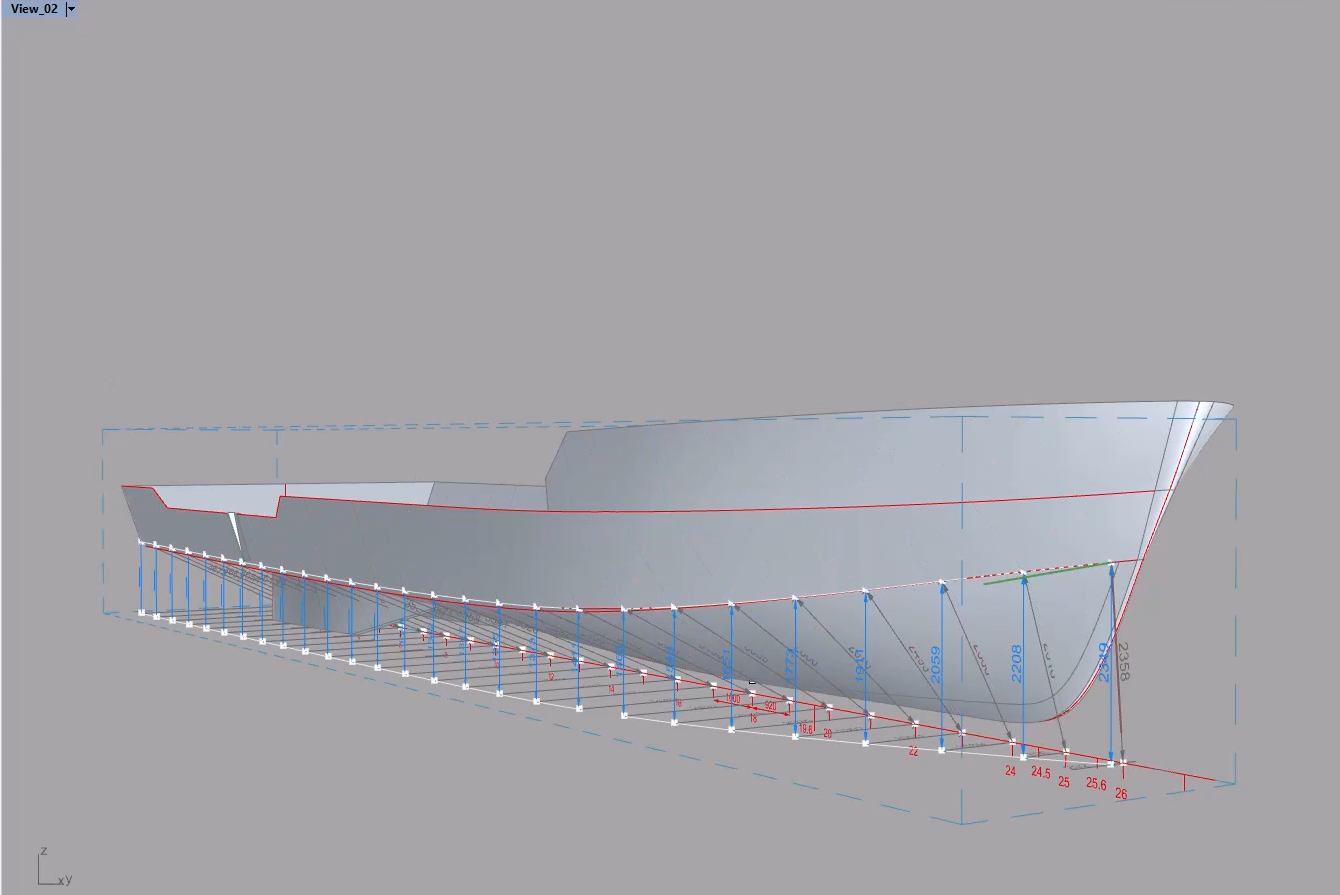

Auto Generated 3D Dims
[5:29]
There are several types of 3D Dimensions.
This demonstration highlights ‘3D DimOffsets’ feature where a 3D curve can be dimensioned for a site setout.
